Crystalyte Galleries

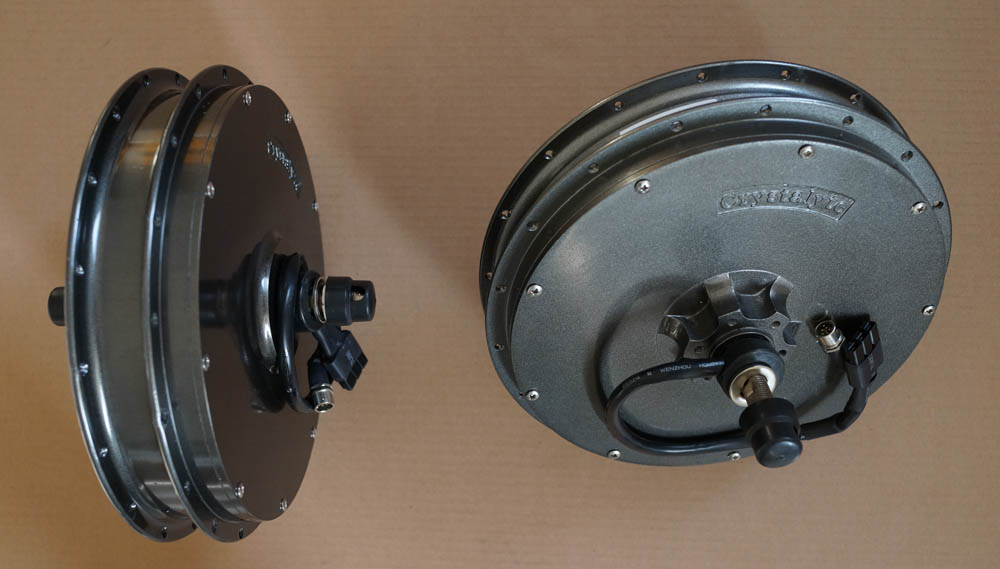

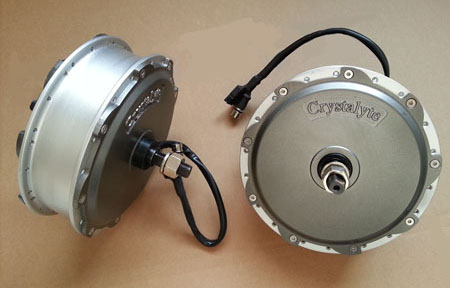

SAW 400 Series Motor

Model  : 406 ; 408 and 4012

Weight : 5.6kg / Speed  : 15MPH / 408 ;  20MPH /406 ....  for city electric bike.....   More detail

　

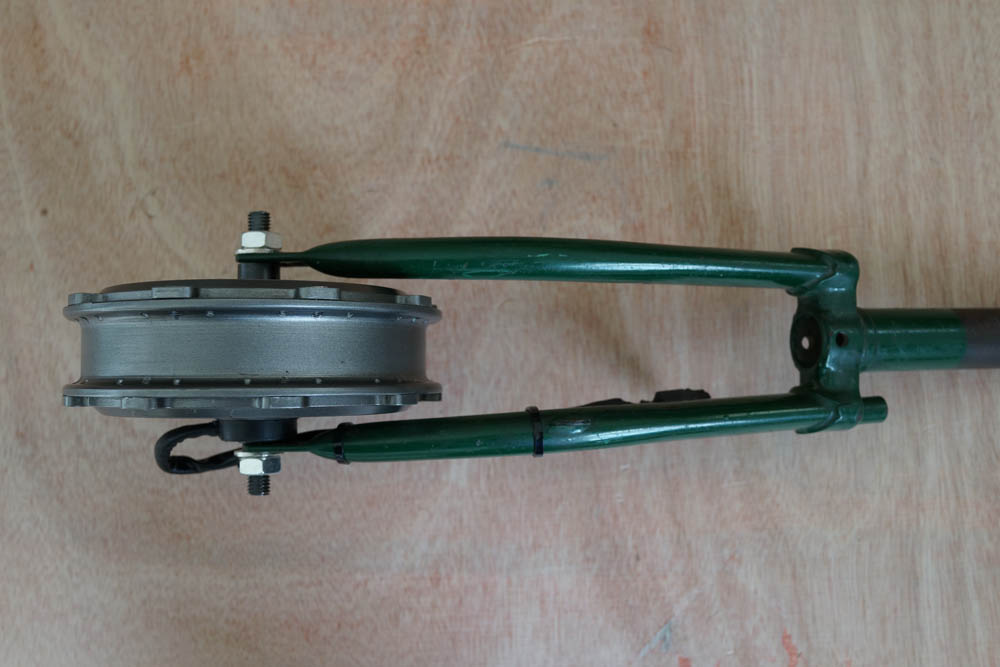

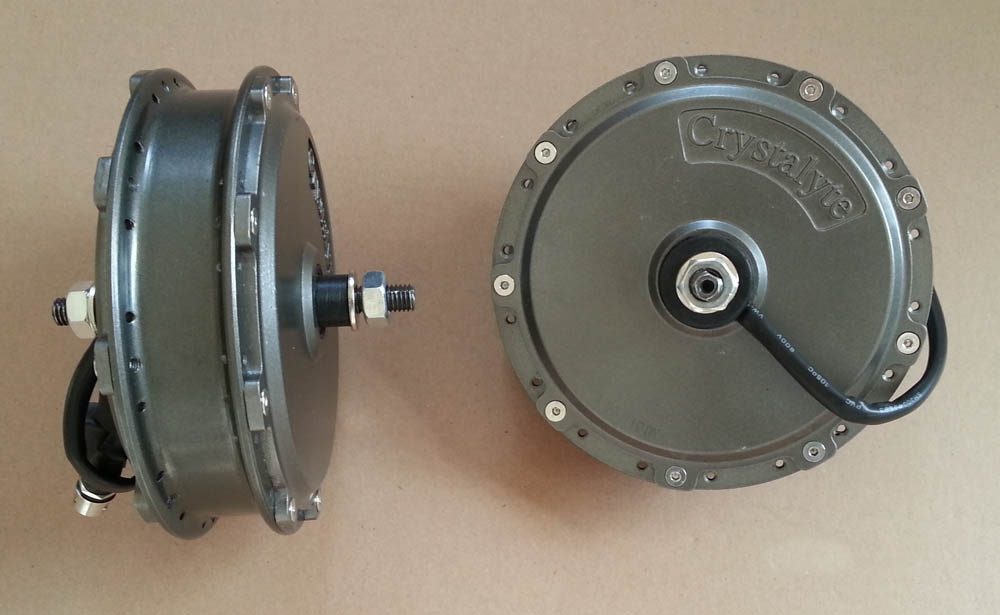

NSM Series Motor for folding bike

Model  : NSM209 :

Weight : 2.5kg / Speed  15MPH to 20MPH .... for folding electric bike .....   More detail

　

H35 Series Motor

Model : H3525 / H3540

Weight :  7kg / Speed 15PMH to  25MPH .... for on road electric bike .....    More detail

　

　

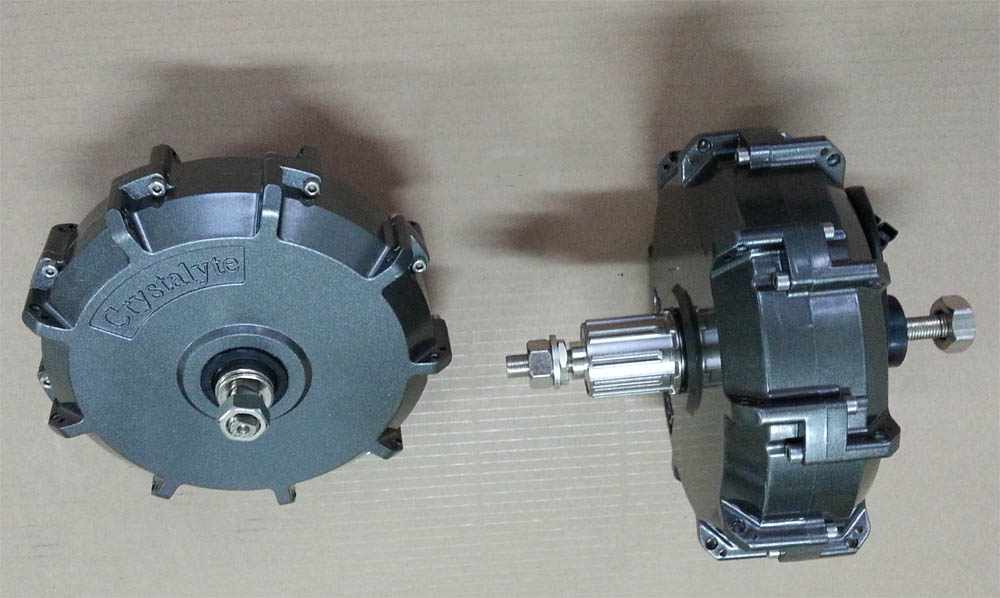

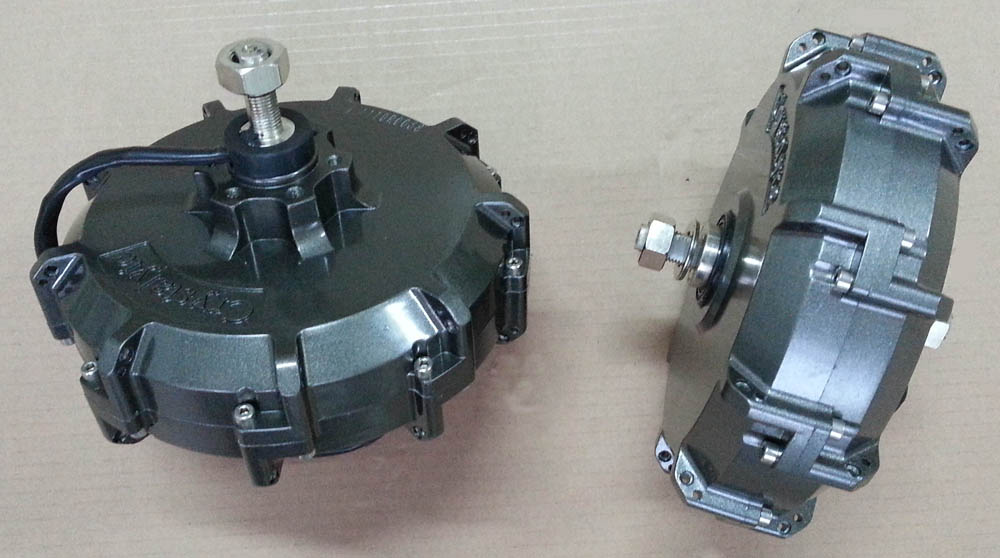

G Series Motor

Model : G25 ;  G30

Weight : 3.7kg / Speed  25km to 30km.... city electric bike ....  More detail

　

　

 Crystalyte High Power Motor

　

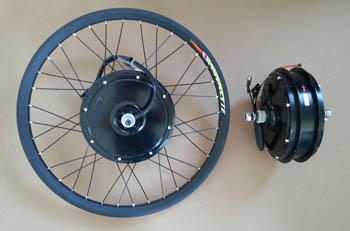

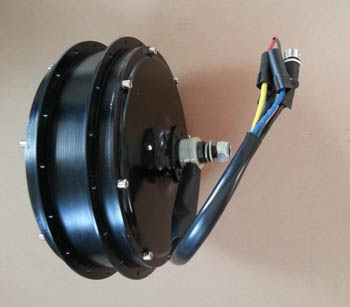

Crystalyte 5403 Series

Model : 5403 ;  5404

Weight : 15kg / Speed  50MPH  ...Design for off road and very strong bike.... More detail

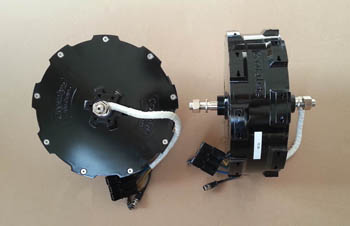

The Crown Series Motor

Model : TC65; TC80 , TC100

Weight : 10kg / Speed  65km ~ 100km ...Design for off road and very strong bike.... More detail

　

H40 Series Motor

Model : H4065 / H4080 :

Weight : 8kg / Speed  65km to 80km.... high speed electric bike .... More detail

　

　

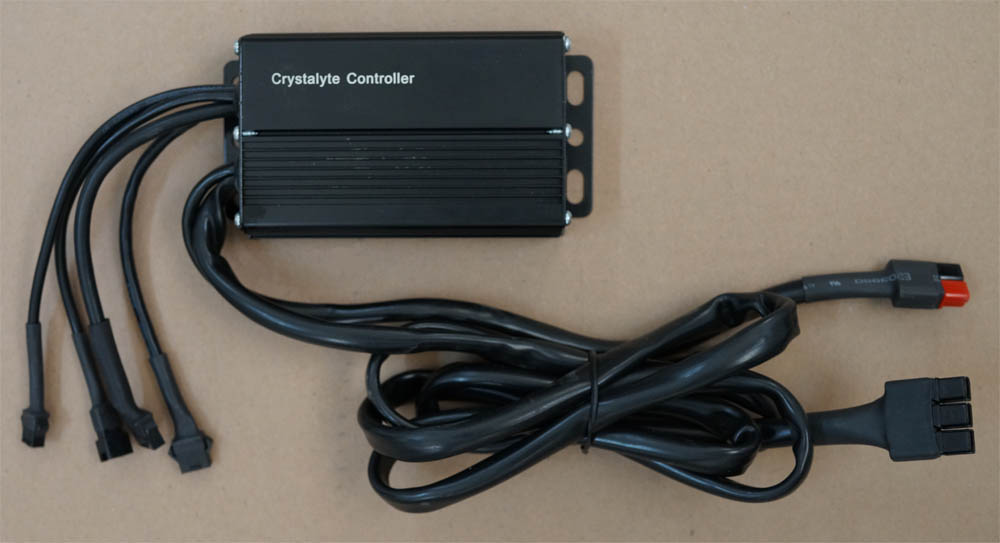

 Crystalyte Controllers

36V / 48V12 ~ 25Amps

 36V / 48V 50Amps

72V 50 ~ 60Amps

96V 45Amps

96V ~ 80Amps

　

Controller voltage range :

  • 1. Voltage range :  36V;  48V ; 72V ; 96V

  • 2. Current ( Amps ) : 12A ; 15A ; 25A ; 50A ; 60A ; 80A and 90A　

Controller Models and Specs  :

  • 36V 12Aamps ; 36V 15Amps and 36V 25Amps

  • 48V 50A

  • 72V 40A :72V 50A ; 72V 60A ; 72V 80A  and 72V 90A

  • 96V 45A and 96V 90A

Remarks :

  • Cut off voltage setting  : 24V C. at 19V ; 36V C. at 30A; 48V C. at 40V and 72V C. at 60V   ( C = Controller )

  • Program controller

  • Mosfets irfb4310 x 12pcs   ;  48A Controller with irfb4110 Mosfets ; 96V Controller with irfb 4115 Mosfets

  • + Increase Voltage ( V ) => Will increase the motor speed

  • + Increase Current ( A ) =>  Will  increase the motor torque

  • The high current controller  72V 50A / 60A / 80A / 90A and 96V 45A and 90A design for The Crown and 5403 motor ( X5 Motor )
