Hi Power Motor

TC Series

Base on the following idea we made the “The Crown / TC motor ”

- High power  & high torque

- Design for 48V ~ 72V battery system

- Speed from 65km/hr  to 100km/hr

- Torque up to 131N.m 72V

The The Crown / TC motors with two series ：　

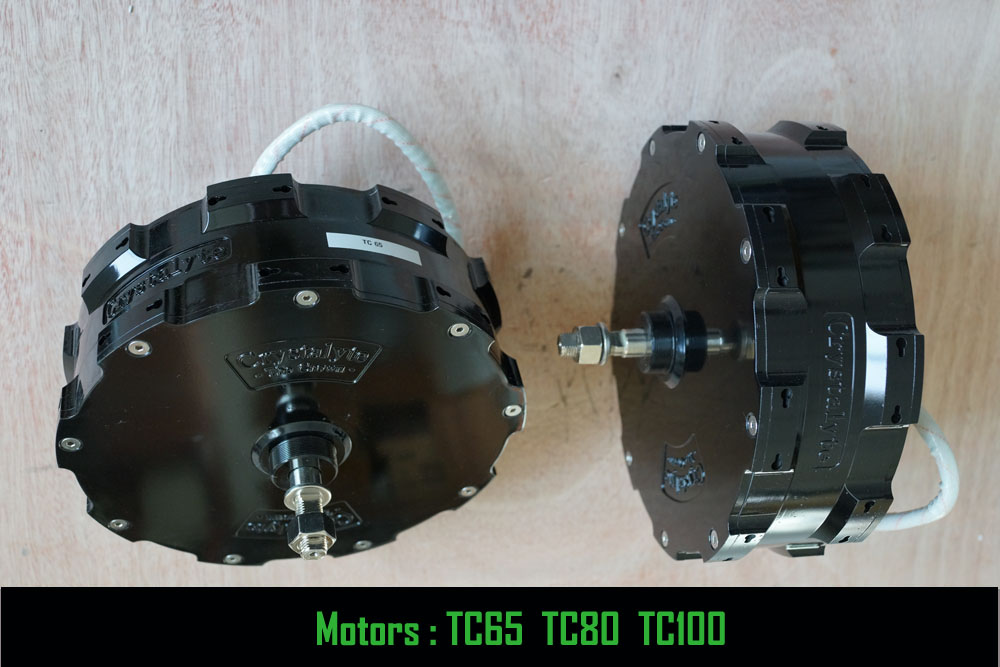

1. TC65 / TC80 / TC100 =》 1 speed freewheel / 140mm axle dropout / Special Spokes with 26 degree angle.

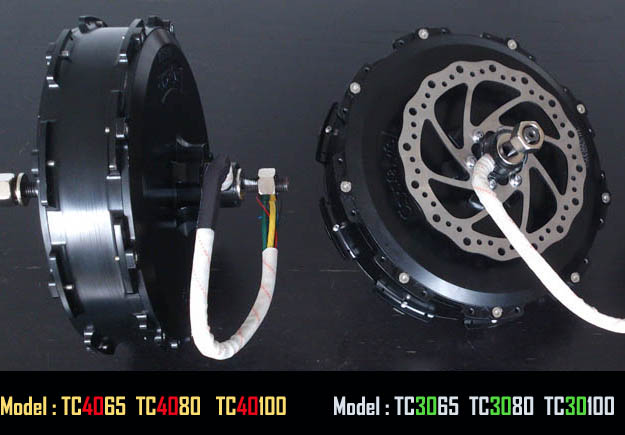

2a. TC4065 / TC4080 / TC100 => 1 speed freewheel / 1 speed freewheel / 138mm axle dropout / Normal spokes.

2b. TC3064 / TC3080 / TC30100 => 7 speed freewheel available / 138mm dropout / Normal Spokes

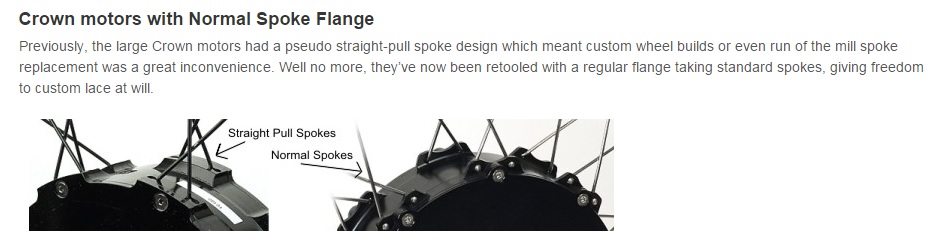

Improvement for the Spoke Flange

         Model : TC65 / TC80 / TC100                TC3080 / TC30100 and TC4080 / TC40100

Motor speed specs :

* TC65 = 65km / 72V 　　　　TC4065 = 65km/hr / 72V             TC3065 = 65km/hr

* TC80 = 80km / 72V                 TC4080 = 80km/hr                       TC3080 = 80km/hr

* TC100 = 100km / 72V             TC40100 = 100km/hr                  TC30100 = 100km/hr

* Speed base on 26" wheel / The speed record may different base on the loading and road condition.

* The TC30xx series will lower torque than the TC65/TC80/TC100 and TC40xx series. Because the high of the stator less 10mm with 30mm only.

TC Motor Specs

* Rear wheel motor

* Two type of dropout version :

- Axle dropout : 140mm  / one speed freewheel => For normal bicycle

- Axle dropout 162mm / one speed freewheel => For custom very strong bike frame

- Axle dimension : M14 -  Strong axle , Normal motor with M12 axle dia.

- TC motor phase wire in bigger size : dia. 6mm2 x 3pcs

- TC Weight : 9kg / ea bare motor

- Aluminum Rotor and Covers

- TC with black standard color

- Motor with hall effect + temperature sensor

　

TC65  TC80 and TC100  Motor Dimension

　

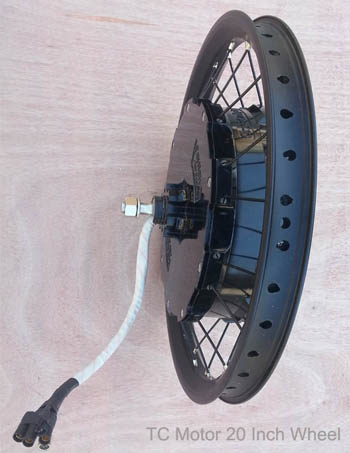

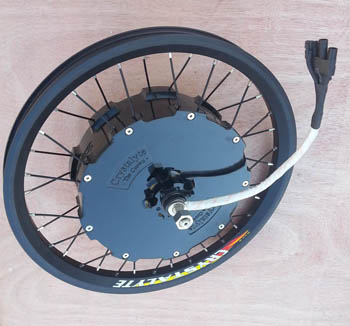

Laced with 20“ wheels

TC65 and TC80 Laced with 26" wheel



Spokes Angel & length

- Spoke  : G12 spokes x 36pcs

- Crystalyte provide stainless spokes

Spokes angle and length

　

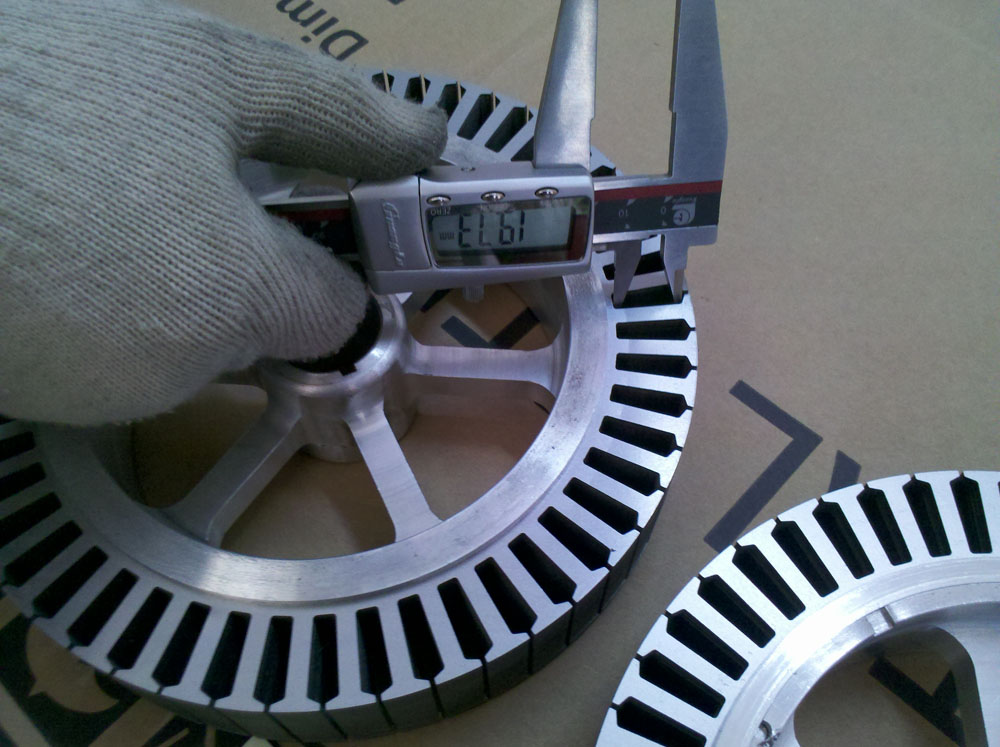

The TC stator and the lamination :

- TC motor design with large and deep slots in the stator in order to provide higher power.

- For this improvement TC motor with  high torque and high efficiency.

- On the other hand, the deep lamination slot design with less  temperature rise.

- TC stator with aluminum frame

　

　

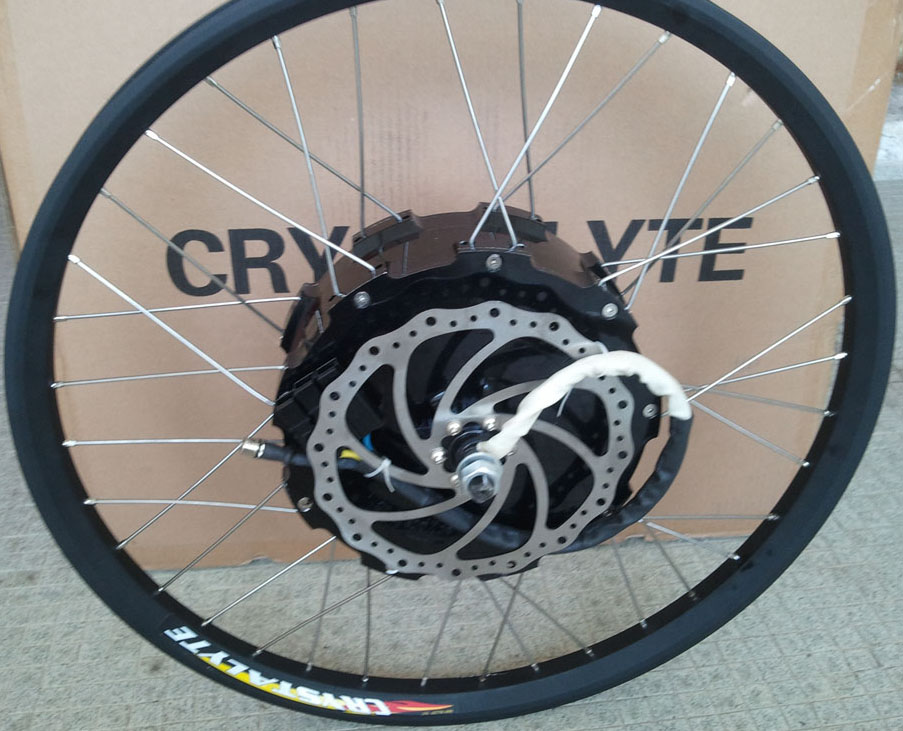

Freewheel and Disc Brake :

One speed freewheel

TC series available with standard 6" to 8" disc brake mount.

　

 Rim for TC

Strong and Double Wall rim request for TC to make sure it is strong enough.

* Crystalyte provide double wall rim J31BS rim with different size.

　

 Specification

Crystalyte TC80 Motor with 72V50A Controller    　 　 　
Descripton U I P1 M N P2 Eff Time
(V) (A) (W) (N.m) (rpm) (W) (%) S
Unload 72.36 2.907 210.4 0.6 656.0 39.01 18.5 0.000
Max-Eff 72.11 24.51 1768 25.6 575.2 1543 87.3 52.00
Max-Pout 71.89 43.81 3149 48.2 521.0 2631 83.6 70.00
Max-Torque 71.34 52.54 3748 110.1 53.1 612.4 16.3 112.0

　

Crystlayte: TC80  Motor with 72V 95A Controller   　 　 　 　
Descripton U I P1 M N P2 Eff Time
(V) (A) (W) (N.m) (rpm) (W) (%) S
Unload 72.34 2.945 213.1 0.4 649.3 29.91 14.0 0.000
Max-Eff 72.33 27.02 1954 28.6 572.3 1715 87.7 55.00
Max-Pout 71.71 90.01 6454 91.9 431.0 4146 64.2 100.0
Max-Torque 69.88 96.48 6742 131.0 78.5 1076 16.0 124.0

　

Remark :

* Motor available up to 96V system.

* 48V system available for TC motor as well.  The speed design base on 72V.

* Battery capacity suggest with 12ah or more. i.e. 72V 12ah or 72V 17ah ...etc.

* Suggest run TC motor with 50A ~ 85A controller or higher voltage system. i.e. 48V 50A , 72V 50A
