Standard model : 406 , 408 and 4012.
* We have made some additional model with custom made, like 404 and 4011
General Information :
| Motor Model | 406 | 408 | 4012 |
| 36V Speed * | 32km/hr | 25km/hr | 25km/hr |
| Torque Nm | 36.50N.m | 44.40N.m | 52.00N.m |
| Weight | 5.4kg | 5.4kg | 5.4kg |
| Wheel Laced Size | 16" ~ 28" | 16" ~ 28" | 16" ~ 28" |
| Voltage range | 36V ~ 48V | 36V ~ 48V | 36V ~ 48V |
| Free Wheel for Rear Hub | 1 speed | 1 speed | 1 speed |
| Front Axle Dropout (mm ) | 100mm | 100mm | 100mm |
| Rear Axle Dropout (mm ) | 135mm | 135mm | 135mm |
| Part No. | F/R4xx | F/R4xx | F/R4xx |
* Nm = Newton meter
* Motor speed record base on 36V system with 26" wheel, While motor hookup with 48V the speed will increase.
- Motor test base on 25A controller. While controller's current increase the torque will increase too. Max. current 40A
to hookup the 400 series motor.
- Motor Covers Color : Blue ; Gray ; White ; Black ; Rotor Color : Silver
Summary of the SAW motor :
Speed km/hr : 406 > 408 > 4012
Torque N.m : 4012 > 408 > 406
Motors Specs : Dimensional Diagrams for SAW400 Series
| 406 | 408 | 4012 | Front Wheel | Rear wheel | |
|
|
|
|
|
|
|

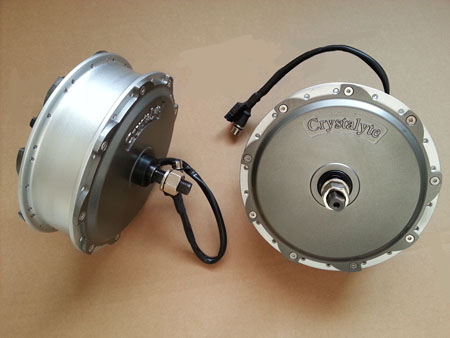

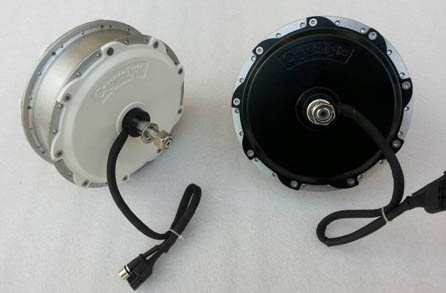

Colorful 400 Motors
   |
Remark on 400 series motor :
- Permanent magnet direct driver / gear less hub motor
- High grade NdFeB Magnets
- Sheet type lamination with deep slot
- High quality hall effect sensors
- NSK sealed bearing
- Cover with stainless Torx screw
- Plug in hall effect hall effect and motor phase connector

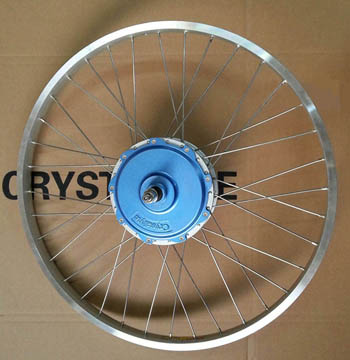

Motor Laced with 26" wheel :
- Motor phase wire Dia. 2.5mm2
- Spokes with G13 and G12 available
- Motor wire length : 30cm
- Anderson Power Pole connector for motor phase and small XRL connector for hall effect sensor
* Motor specs may change without notice. Please contact us for confirmation.
