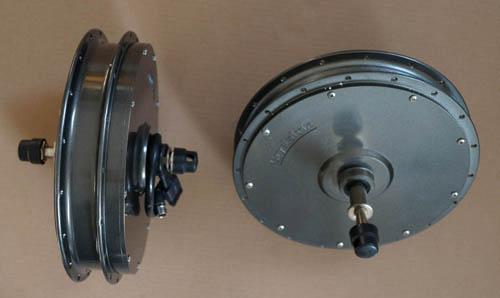

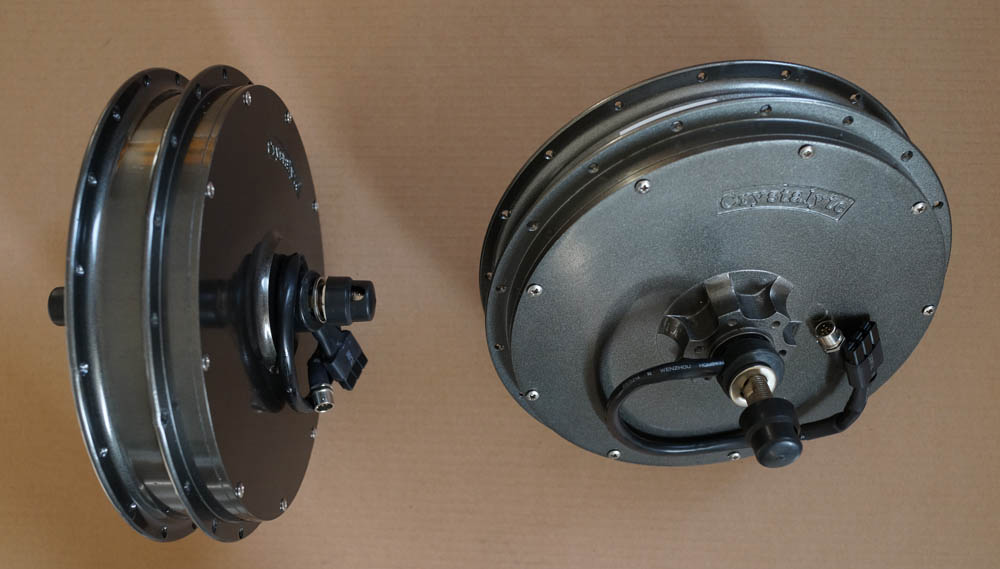

Crystalyte H35-Series Motor
Model H3525 & H3540
The H-Series design for multipurpose hub motors. The speed range from 25km/hr_36V to 40km/hr.
It is design for 36V ~ 48V system.
Motor Model ：H3525 , H3540, H4065, H4080 , H2425 , H2440
* The 2 number after H for magnet width.
35mm thickness stator for : front wheel and rear wheel
24mm thickness stator for : front wheel motor only.
H3525 Speed 25km/hr - 36V
H3540 Speed 40km/hr - 36V
* The last two number for speed ( km/hr ) record
* While the motor hookup with 48V system the speed will increase.
* We have custom made H3548 and H3580 motors with min.50pcs quantity.
All Front wheel axle dropout : 100mm
|
* Crystalyte provide matching Shimano 7 speed freewheel for rear motor.

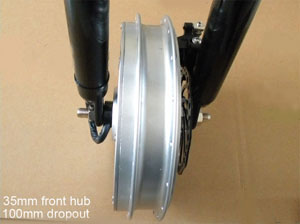

Fig.100mm front wheel dropout
|
|
H - Series Motor Weight :
24mm Stator front wheel hub 5.8kg
35mm stator front wheel and rear wheel hub 7.2 ~ 7.4kg
Standard motor color : RAL9007 Gray Color
Silver and Black or other color available
H35 Motors Laced wheel :
H series which can laced with 20" - 24“ - 26” - 700C and 28" rim
For experienced 90% laced with 26" wheel.
 |

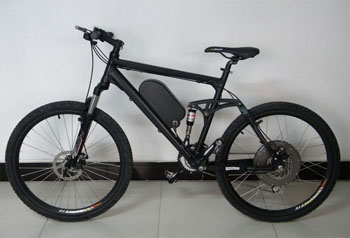

Fig.H35 laced in 26" wheel
Freewheel and Disc Brake :
H series available with 6" to 8" disc brake mount.
35mm rear wheel available for 7 speed freewheel
Motor Rim :
Double wall rim request to make sure it is strong enough.
* Crystalyte can provide rim with different size.
* Crystalyte provide mount the rim for motor's service.
H35 Motor Spokes :
G12 Spokes
G13 Spokes
* Crystalyte provide steel and stainless spokes.
Motors Dimension :
Front Motor HT24 / HS24 Drawing with dimension
Rear Motor HT35 / HS35 Drawing with
dimension
Motor specs :
Motor speed and torque can be adjustment. The greater number of the coils the greater torque but the slower speed.
We have standard with two speed for quantity production. Max.25km/hr for European Bike law request. Also we have 40km/hr for off road.
The speed record base on 36V battery application. Motors available for 48V and 72V as well.
Front wheel HT24 for 25km/hr :
|
Description |
U |
I |
P1 |
M |
N |
P2 |
Eff |
|
(V) |
(A) |
(W) |
(N.m) |
(rpm) |
(W) |
(%) |
|
|
Unload |
35.93 |
0.662 |
23.79 |
0.03 |
224.7 |
0.70 |
2.9 |
|
Max-Eff |
35.72 |
5.931 |
211.8 |
8.53 |
197.2 |
176.1 |
83.1 |
|
Max-Pout |
35.02 |
24.17 |
846.7 |
38.60 |
111.2 |
449.4 |
53.0 |
|
Max-Torque |
34.76 |
26.29 |
914.1 |
47.74 |
46.1 |
230.4 |
25.2 |
|
End |
34.76 |
26.29 |
914.1 |
47.74 |
46.1 |
230.4 |
25.2 |
Front wheel HS24 for 40km/hr :
|
Description |
U |
I |
P1 |
M |
N |
P2 |
Eff |
|
(V) |
(A) |
(W) |
(N.m) |
(rpm) |
(W) |
(%) |
|
|
Unload |
35.89 |
1.030 |
37.00 |
0.03 |
341.5 |
1.07 |
2.8 |
|
Max-Eff |
35.48 |
11.90 |
422.5 |
11.77 |
290.1 |
357.4 |
84.6 |
|
Max-Pout |
35.01 |
25.21 |
882.9 |
26.87 |
233.8 |
657.7 |
74.4 |
|
Max-Torque |
35.01 |
25.94 |
908.4 |
47.56 |
21.9 |
109.0 |
12.0 |
|
End |
35.01 |
25.94 |
908.4 |
47.56 |
21.9 |
109.0 |
12.0 |
Rear wheel HT35 for 25km/hr
:
|
Description |
U |
I |
P1 |
M |
N |
P2 |
Eff |
|
(V) |
(A) |
(W) |
(N.m) |
(rpm) |
(W) |
(%) |
|
|
Unload |
35.94 |
0.918 |
33.00 |
0.04 |
250.0 |
1.04 |
3.1 |
|
Max-Eff |
35.51 |
8.837 |
313.9 |
11.61 |
222.5 |
270.4 |
86.1 |
|
Max-Pout |
34.87 |
25.41 |
886.5 |
37.04 |
170.7 |
661.9 |
74.6 |
|
Max-Torque |
34.87 |
26.53 |
925.3 |
60.16 |
46.1 |
290.3 |
31.3 |
|
End |
34.87 |
26.53 |
925.3 |
60.16 |
46.1 |
290.3 |
31.3 |
Rear wheel HS35 for 40km/hr :
|
Description |
U |
I |
P1 |
M |
N |
P2 |
Eff |
|
(V) |
(A) |
(W) |
(N.m) |
(rpm) |
(W) |
(%) |
|
|
Unload |
35.90 |
1.543 |
55.41 |
0.07 |
350.8 |
2.57 |
4.6 |
|
Max-Eff |
34.87 |
14.29 |
498.5 |
13.42 |
306.3 |
430.3 |
86.3 |
|
Max-Pout |
34.87 |
26.02 |
907.6 |
26.53 |
271.9 |
755.2 |
83.2 |
|
Max-Torque |
34.99 |
24.92 |
872.1 |
60.09 |
22.6 |
142.1 |
16.3 |
|
End |
34.99 |
24.92 |
872.1 |
60.09 |
22.6 |
142.1 |
16.3 |
